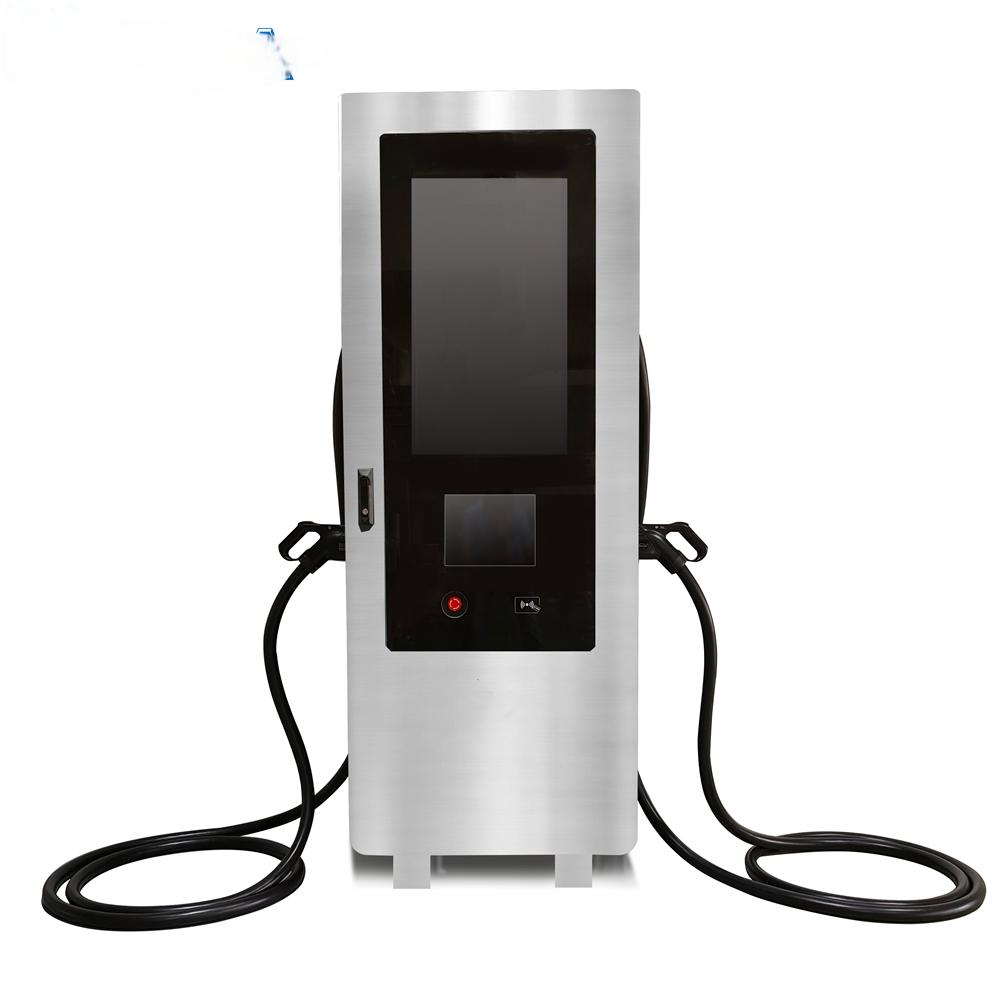

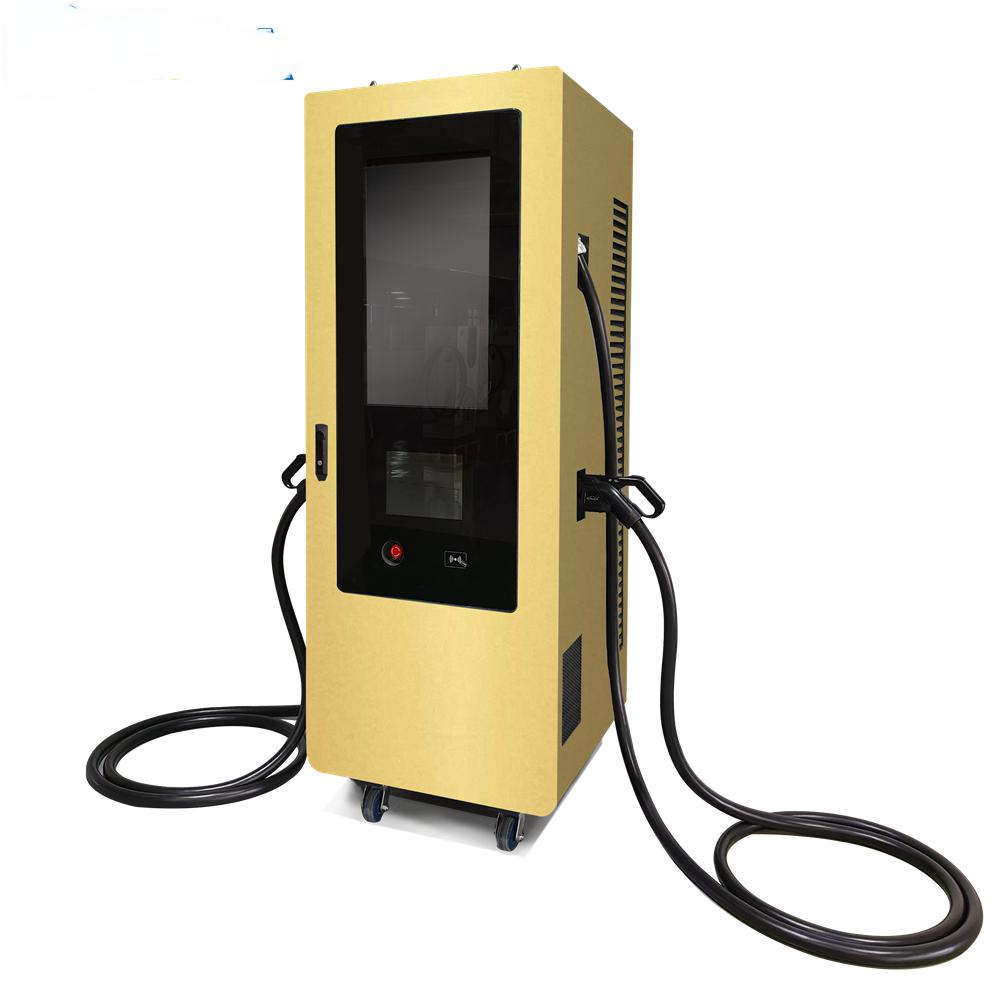

Fast EV Charger, Point Digital Advertising Charging Station With Credit Card OCPP-china supplier

China Factory 120KW 180kW 240kw Fast EV Charger Point Digital Advertising Charging Station With Credit Card OCPP

60kw 80kw 120Kw Outdoor Public Ccs2 Chademo Electric Car Bus

Dc Ev Fast Charging Station Charger for electric vehicle

Rate Power:60kw 90kw 120kw 150kw 180kw 240kw

Input Voltage:400V±15%

Input Voltage Type:TN-S(Three Phase Five Wire) AC

Grid Frequency:45-65Hz

Output Voltage:150V-1000V

Output Voltage Error:≤0.5％

Output Current Error:When Output current≥30A:≤±1％

When output current＜ 30A:≤±0.3A

Power Factor:≥0.99

Leakage current:≤10mA

Power Frequency Withstand Voltage:2500VAC

Simultaneously charging up to 3 EVs

Flexible configurations 60kw 80kw 100kw 120kw 160kw 180kw 240kw DC Charging Station
Supporting CCS, CHAdeMO, GB/T, and Type 2 AC charging
Ethernet, Wi-Fi, 4G connection
OCPP 1.6J & OCPP 2.0

Multi-standard Charging
- Supports CCS, CHAdeMO, GB/T, and AC connectors. Charging up to 3 vehicles at the same time
- Triple outlet ports, two DC cables, one AC cable, and one 3.6kW schuko output

Item	PowerDC 60kW; AC 22kW/44kW	DC 90kW; AC 22kW/44kW	DC 120kW; AC 22kW/44kW
Input	Input Voltage	3-phase 400V ±15% AC
	Input Voltage Type	TN-S (Three Phase Five Wire)
	Working Frequency	45~65Hz
	Power Factor	≥0.99
	Efficiency	≥94%
Output	Rated Voltage	DC - CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC - Type-2 400V; GBT 400V
	Max. Output Current	DC - CHAdeMO 125A; CCS 200A; GBT 250A;	AC - Type-2 63A; GBT 32A
Interface	Display	8'' LCD Touchscreen
	Language	Chinese, English, French, German, Spanish, Russian, etc.
	Payment	Mobile APP/RFID/POS
Communication	Network Connection	4G(GSM or CDMA)/Ethernet
	Communication Protocols	OCPP1.6J or OCPP2.0
Working Environment	Working Temperature	-30°C ~ +55°C
	Storage Temperature	-35°C ~ +55°C
	Operating Humidity	≤95% Non-Condensing
	Protection	IP54
	Acoustic Noise	<60dB
	Cooling Method	Forced Air-Cooling
Mechanical	Dimension(W x D x H)	7001900650mm
	No. of Charging Cable	Single	Dual
	Cable Length	5m or 7m
Regulation	Certificate	CE/IEC61851-1/IEC61851-23/IEC61851-21-2
